Stock # B49

Schuitemaker - Rapide 840 S

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

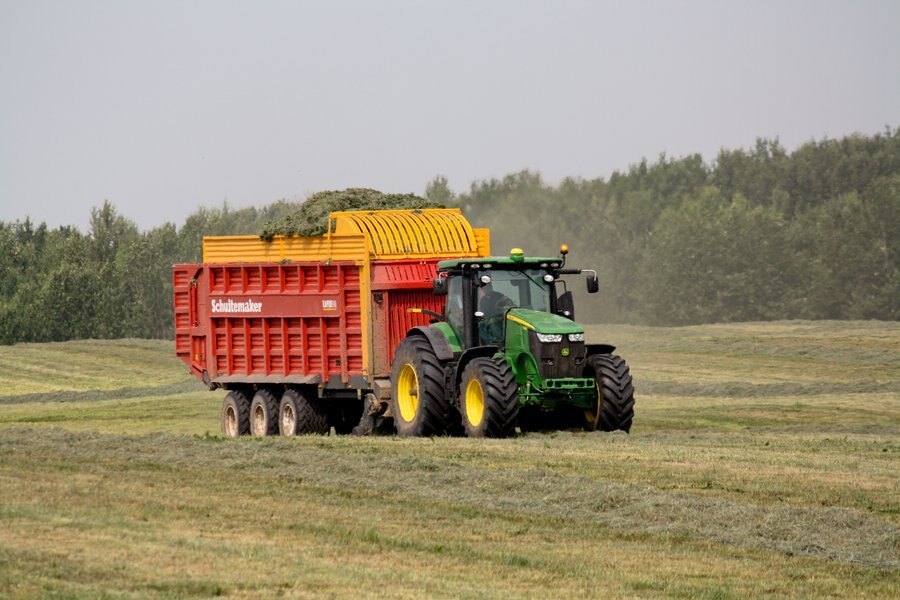

Typical Rapide 840 S

Standard equipment

Star-shaped rotor of 7 rows and 20 mm thick tines with hard facing
Stripperframe which leads to uniform cropload
Both rotor and pick-up 2,0 (m) wide
RapidFlow hydraulic driven intake roller
Box construction with enforced side panels and cage construction
Galvanized and powder painted side panels
Height adjustable drawbar with swiveling towing-eye
Hydraulic suspended drawbar with 2 hydraulic cylinders and accumulator
Omega frontboard with 50 cm yellow steel extension (hinged)
Unique suspended, floating pick-up with 2x2 pick-up wheels
Wide-angle PTO-driveshaft with automatic cut-out clutch, 1000 rpm drive
3 sectional knivebar for max 43 knives (cutting length 4,4 cm)
Standard equipped with 43 knives (6mm thickness, double edged)
Steel floor with double scraper floor, hydraulically both-side driven, incl. 2 speed drive
Scraper floor protected with automatic switch-off by backdoor(S)
Bumper with Led roadlights, set of 3 Led-working lights, Led-sidelights and reflection striping on backdoor, mudguards & mudflaps
36 tons parabolic suspended tridem, forced steered, steering arm 250mm both sides, with air brakes 6 wheel brakes, parking brake,
wheelbase 1.525 mm
Tires Vredestein 710/40 R22,5 Flotation Pro Radial 10hls

Model

Rapide 840 S

Category Name

Agriculture

Year

2024

Sale Type

New

Manufacturer

Schuitemaker

Technical data

Technical data

Legenda

S = Standaard

O = Optioneel

General
Height adjustable drawbar with hinging drawbar eye (D50)	s
Hydraulic articulated drawbar with cylinders and accumulator	s
Colour-coded hydraulic hoses	s
Steel sunken bottom with one-sided driven dual deck chain	s
Deck chain end switch-off via backdoor	s
Number of beaters	-
Safety
Rear bumper with lighting	s
Reflective stripes on backdoor	s
Set of 3 work lights	o
LED side lights	o
Set of mudguards	s
Set of mudflaps (only in combination with mudguards)	s
Building options
50 cm steel extension (hinged)	o
50 cm steel extension on backdoor	o
Undercarriage
Number of axles	3
36 ton parabolic suspended tridem, forced steered (wheel base 1.525 mm)	s
Ball coupling K80 (80 mm)	o
Distance of steering arm at 200 mm rather than 250 mm	o
Lock following steering axle via control box	o
Alliance 750/45 R22.5 I-380	o
Vredestein 710/45 R22.5 Flotation TRAC	o
Input
Width of pick-up and rotor	2,00 m
Rotor diameter	500 mm
Star-shaped cutting rotor	20 mm wide tines
Number of stacked tines	7 tine rows
Number of cutting blades (double edged)	43
Cutting length	4,4 cm
Braking
Air brakes (on 6 wheels)	s
HHydraulic brakes instead of air brakes (on 6 wheels)	o
Air brakes combined with hydraulic brakes (on 6 wheels)	o
Electric airbrake control (ELB)	o
