Stock # B52

Schuitemaker - Rapide 7200 S / W

Call for Price
   Typical Rapide 7200 S / W
  • Volume (DIN)  42 m3
  • 30 ton hydraulic suspended tandem
  • Hydraulic / elektric steered
  Standard equipment
  • Controlbox with full colour touchscreen. Mainfunctions available using 2 joysticks
  • Star-shaped rotor of 9 rows and 20 mm thick tines with hard facing
  • Stripperframe which leads to uniform cropload
  • Both, rotor and pick-up are 2,0 (m) wide
  • Heavy-Duty rotor system and driveline
  • RapidFlow hydraulic driven intake roller
  • Box construction with enforced side panels (galvanized and powder painted) and cage construction

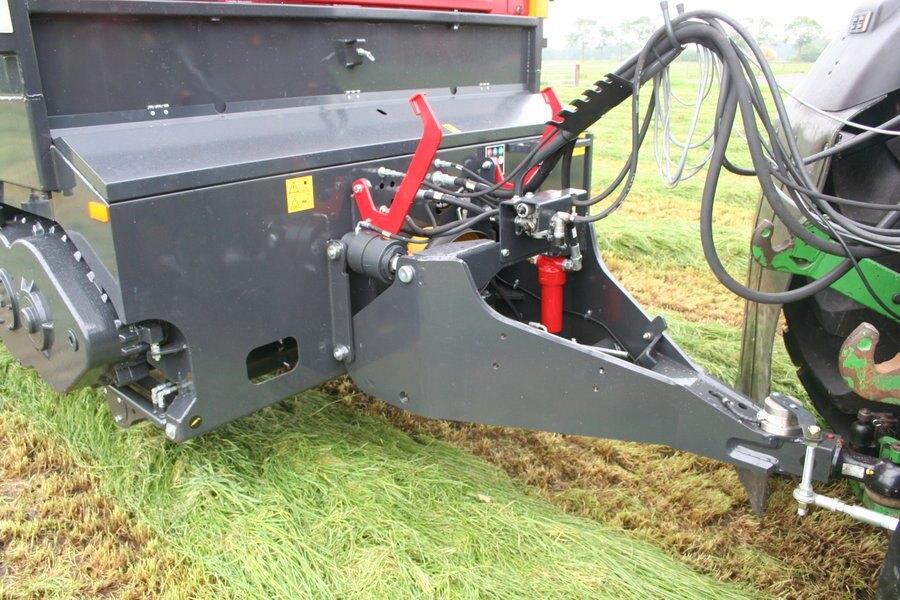

  • Height adjustable drawbar with swiveling towing-eye
  • Hydraulic suspended drawbar with 2 hydraulic cylinders and accumulator
  • Ball coupling K80 (80 mm) with steering bar ball coupling K50 (50 mm)
  • Unique suspended, floating pick-up with 2x2 pick-up wheels
  • Wide-angle PTO-driveshaft with automatic cut-out clutch, 1000 rpm drive
  • 3 sectional knivebar for max 43 knives (cutting length 4,4 cm)
  • Standard equipped with 43 knives (6mm thickness, double edged)
  • Steel floor with double scraper floor, hydraulically both-side driven, incl. 2 speed drive
  • Scraper floor protected with automatic switch-off by backdoor (S model) or by lowest beater (W model)
  • Integrated hydraulic front board, RapidStream with 10 cm steel extension on side panels and backdoor
  • Bumper with Led roadlights, set of 3 Led-working lights, Led-sidelights and reflection striping on backdoor, mudguards & mudflaps
  • 30 tons hydraulic suspended axle, with electrical/hydraulic steering, steering arm 250 mm,
    Airbrakes on 4-wheels, parking brake, wheelbase 1.900 mm
  • Axles prepared for air pressure regulations system, pressurefilter for hydraulic system
  • Tires BKT 750/60 R26,5 FL630 Super
Rapide 7200 S / W
Sale Type
technical data


  Technical data

Volume (DIN)

 m3    42

Track width

mm  1.950 / 1.950

Total dimensions (lxbxh)

 cm 1.047x285x400 /1.047x285x400

Box dimensions (lxbxh)

cm  808x234x220 / 808x234x220

Pick-up width

cm   200 / 200

Knive thickness

mm     6 / 6


 tons   30 / 30

Max. tyre height

cm  162 / 162


  750/60 R26.5 / 750/60 R26.5

No. of silage beaters

   - / 2
  Technical data


S = Standaard

O = Optioneel

Height adjustable drawbar with hinging drawbar eye (D50) s
Hydraulic articulated drawbar with cylinders and accumulator s
Colour-coded hydraulic hoses s
Steel sunken bottom with one-sided driven dual deck chain s
Deck chain end switch-off via backdoor (S) or bottom beater (W) s
Number of beaters - / 2
Rear bumper with lighting s
Reflective stripes on backdoor s
Set of 3 work lights o
LED side lights o
Set of mudguards s
Set of mudflaps (only in combination with mudguards) s
Building options

10 cm steel extension (hinged)

10 cm steel extension on backdoor s
Aantal assen 2
30 ton hydraulic suspended BPW tandem, following steered (wheel base 160 cm) o
Steering arm with ball coupling K50 (50 mm) s
Distance of steering arm at 200 mm rather than 250 mm o
Alliance 750/45 R26.5 I-380 o
30 ton hydraulic suspended BPW tandem, forced steered (wheel base 160 cm) s
Vredestein 710/50 R26.5 Flotation TRAC o
Vredestein 750/45 R26.5 Flotation TRAC o


Width of pick-up and rotor 2,00 m
Rotor diameter 650 mm
Star-shaped cutting rotor 20 mm wide tines
Number of stacked tines 9 tine rows
Number of cutting blades (double edged) 43
Cutting length 4,4 cm
Air brakes (on 4 wheels) s
HHydraulic brakes instead of air brakes (on 4 wheels) o
Air brakes combined with hydraulic brakes (on 4 wheels) o
Automatic airbrake control (for hydraulic suspended axles) o
