The must-have to make an optimal use of slurry!


Slurry Mixers

General Points

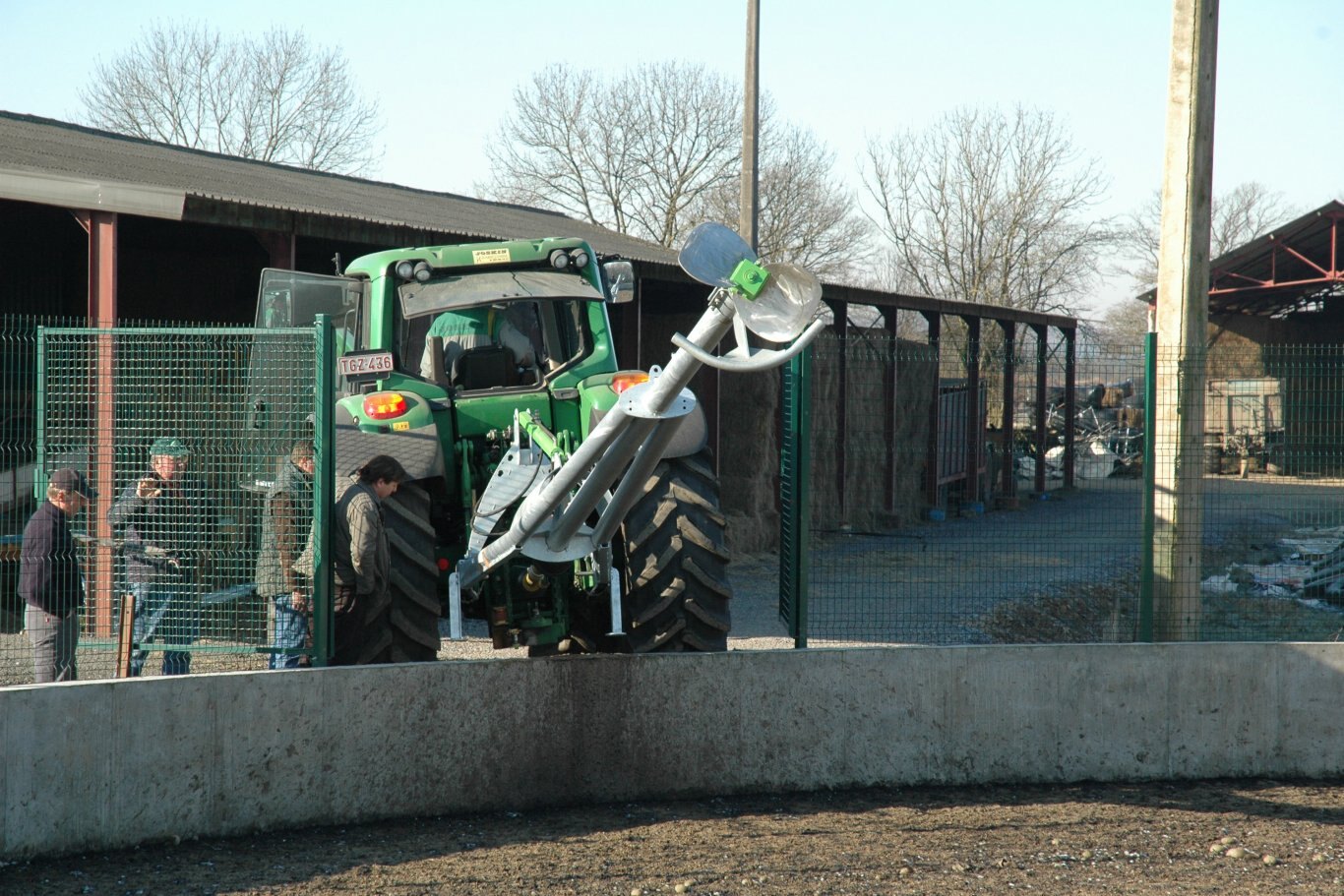

The Jumbomixer, pit mixer and chopper, has a fully hot-dip galvanised frame for an optimal protection against corrosion. Its stainless steel propeller has been specially designed for a high-performance mixing and chopping. The 3-point hitch for the tractor allows easy travels from one lagoon to another. In short, an essential tool for the optimal use of slurry!

Sale Type


J5000 J7000 J8000
Machine reference
4980 4315 4981


/ /
Chassis length 5,15 7,35   8,25
Required tractor power
70 100  100
Rotation speeds
540/800 540/800 540/800
Machine weight
300 480 510
ALPINA2 Narrow Machine

Strong Triangular Structure

A triangular structure, which is made up of two side tubes and an upper one, makes the machine highly stable. Furthermore, the intersection point of the tubes prevents the transmission shaft from any torsion.

ALPINA2 Narrow Machine Reinforced Transmission

For a greater safety and longevity, the JOSKIN Jumbomixer is equipped as standard with a star tube reinforced cardan shaft with a shear bolt security. The transmission from the gearbox to the propeller happens through a reinforced steel anti-torsion shaft supported by various bearings and seals. Despite this "ultra-resistant" technology, its power requirement remains reasonable: 70 hp or more depending on the model.

ALPINA2 Narrow Machine Quality Propeller and Work

Its stainless steel propeller has been specially designed for a high-performance mixing and chopping. Its stainless steel counter blade plays a major role in the chopping work. Stainless steel not only provides a superior protection against corrosive products, but also has a very smooth surface for an efficient chopping without any sticking effect. The storing stand and the rim of the propeller avoid an accidental contact between the propeller and the wall of the lagoon.

ALPINA2 Narrow Machine Maneuverability

A double-acting hydraulic ram on the triangular structure makes it possible to adjust the angle of inclination (max. 45°) of the Jumbomixer, and therefore the aggressiveness of the work to be done. The ideal propeller speed lies between 540 and 800 rpm for a perfect work, even for several hours in a row. The Jumbomixer can therefore easily adapt to the circumstances of the different lagoons it will be confronted with.

ALPINA2 Narrow Machine Easy Maintenance

The propeller bearings are integrated in a one-piece "complete kit" which acts as an intermediary between the propeller and the transmission shaft. In this way, should the bearings ever wear, this kit is easy to replace and avoids the replacement of the whole transmission shaft.

special features

Standard equipment

  • Fully galvanized
  • Reinforced Walterscheid P.T.O.-shaft in star-shaped tube with shaft and shear bolt security (1.310 mm) (1'' 3/8 on JUMBOMIXER J5000 and 1'' 3/4 on JUMBOMIXER J7000 and J8000)
  • Hitching for 3-point linkage
  • Rotation speed: 540 rpm (max 800 rpm)
  • Inclination adjusting cylinder (max. 45°) (1 SA)

Specific equipment JUMBOMIXER J5000

  • 2-blade Ø 600 mm standard propeller in 5 mm reinforced stainless steel
  • Transmission shaft 1'' 3/8
  • Pin slot of the transmission shaft on 3 points (FAG stages)
  • Very thick reinforced outer pipe (115 mm)
  • Step-up bearing and bronze bush with oil bath and tightness triple seals
  • Bolted protection arches (Ø: 650 mm)
  • Minimum tractor power: 70 hp
  • Weight: 300 kg

Specific equipment JUMBOMIXER J7000 and J8000

  • 2-blade Ø 650 mm JUMBO propeller in 6 mm reinforced stainless steel
  • Large diameter 1 3/4" transmission shaft (50 mm, bearing: 55 mm)
  • Transmission shaft mounted on oil bath stages:
  • - J7000 pin slot of the transmission shaft on 4 points
  • - J8000 pin slot of the transmission shaft on 5 points
  • Self-cleaning by stainless steel counterblade
  • Protection stand for the propeller
  • Very thick reinforced outer pipe (127 mm)
  • Upper and side pipes to ensure optimal stability
  • Minimum tractor power: 100 hp
  • Weight: 480 kg (J7000) - 510 kg (J8000)
