Stock # G32

Teagle Tomahawk 9500

Call for Price

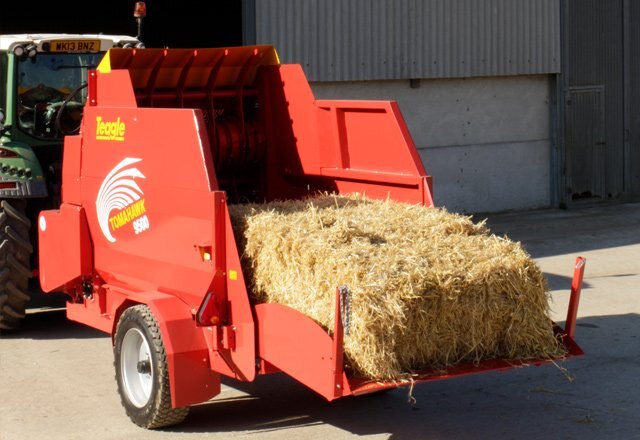

Tomahawk 9500
The New benchmark in high performance bale processing. Ideally suited to farmers who require a combination of manoeuvrability and high capacity.

A complete package: Bluetooth controls, twin crossbeaters, large capacity, compact design

9500 Summary

  • Wide body / twin crossbeater configuration ensures easy loading and offers large 8m³ capacity.
  • Large diameter fan spreads straw up to 22m and feeds clamp or chopped bale silage.
  • Bluetooth® wireless technology for straightforward communication between the operator and the Tomahawk 9500.
  • Weigh cells and braked axle options available.

Incorporates Tomahawk 'Flow Plus' Design For:
Greater output, a more consistent feed rate and controlled delivery at low fan speeds.


Tomahawk 9500
Sale Type
additional options

Hydraulic Filter Hydraulic Filter
In-line high pressure filter stops contamination from damaging the valve equipment.

Tailgate Extension Tailgate Extension
Increase capacity and ease of loading, attaches easily to a standard tailgate.
Swivel Chute Extension Swivel Chute Extension
Swivel chute extension to increase discharge height.
Weigh Cells Weigh Cells
Weigh cells, available in standard or programmable versions. Track your input costs or weigh feed materials to control diets. Improve feed/bedding cost efficiency and stock management.
Side Discharge Chute Side Discharge Chute
Deliver only to the right hand side, with slightly greater blow distance than the swivel chute. Discharge height is lower for easier access to low buildings. Chutes can be raised or lowered as required.
Wide Angle PTO Wide Angle PTO
For continuous operation when turning corners a Wide Angle Walterscheid PTO shaft is also available.


benefits and features
Heavy Duty Bed Chain Heavy Duty Bed Chain
12mm heavy duty bed chain, resulting in less tensioning adjustments. The chain does not have anything welded to it, which would lower its strength.
Twin Crossbeaters 9500 Twin crossbeaters
For a high and consistent discharge rate, ideally suited for feeding clamp materials, chopped bale silage and spreading straw.
Telehawk Wireless Control Box Wireless Control
Slimline control panel uses Bluetooth® wireless technology for straight-forward communication between the operator and the Telehawk.
Road Lighting Kit Road Lighting Kit
Recommended for highway use.
Remote Control Tailgate Bedchain SwitchRemote control tailgate & bedchain switch
Load bales without having to return to the tractor cab, ideal when removing netting or wrap.
T8100 Tailgate 640x440Tailgate Mechanism and Under Floor Panel
The Rear Door has two hydraulic cylinders to reduce stress on the chassis. The Tomahawk has an underfloor panel fitted; useful for maintenance.
640x440 Twin Crossbeater Robust TransmissionRobust Transmission - Twin Crossbeaters
Chain drive to crossbeaters ensures reliable transmission of maximum power.
Visual FeedbackVisual Feedback
An indicator confirms the movement of the bed chain. The hydraulic motor driving the bed chain is not vulnerable to damage.
Swivel ChuteSwivel Chute
For flexibility of delivery, the chute rotates 280? allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.


product specifications
  9500 9500SC
Chute Side Swivel
Dual Chop
No No
Straw Spread Spread
No. of crossbeaters 2 2
Capacity (m³) 8.0 8.0
No. of 5' round bales 3 - Straw Only (or 2x 6' round bales) 3 - Straw Only (or 2x 6' round bales)
No. of 8' rectangular bales (4'x3' / 4'x4') 2 / 1 2 / 1
Bale chamber (tailgate down) W x H x D 1.70 x 1.55m x 4.00m 1.70 x 1.55m x 4.00m
Blow distance (max.) 25m 22m
Min. tractor PTO 80HP 80HP
Overall width (chute closed) 2.49m 2.21m
Overall length (tailgate up) 5.2m 5.2m
Overall length (tailgate down) 6.33m 6.33m
Overall height (chute closed) 2.9m 2.9m
Tyre size 305/55R 22 (options available) 305/55R 22 (options available)
Feed Clamp Silage Yes Yes
Unladen weight (mounted) 3007kg 3017kg
Bed Cubicles / Straw Processing No No
Bed Loose Housing Yes Yes
