ID # 21363850

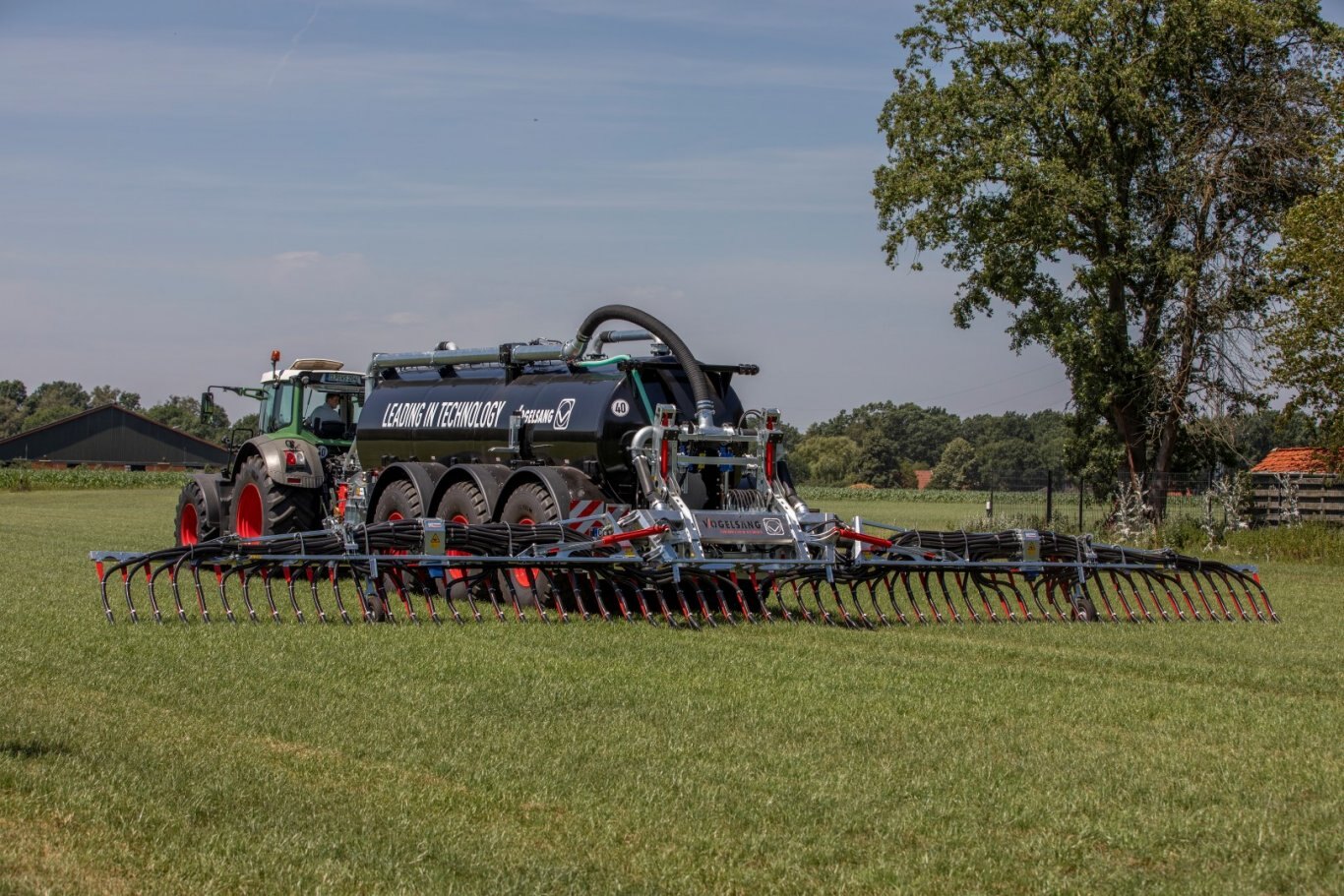

Vogelsang SwingMax

  • Vogelsang SwingMax
  • Vogelsang SwingMax
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

DRIBBLE BAR SYSTEM WITH MAXIMUM PERFORMANCE AND FLEXIBILITY

SwingMax

  • Maximum accuracy in distribution thanks to precision distributors and an optimized hose layout
  • Maximum flexibility in use
  • Extra-stable boom
  • Compact installation on the tanker
  • Secure and speedy opening and retracting

MAXIMUM DISTRIBUTION RESULTS WITH THE DRIBBLE BAR SYSTEM

Why it is so much easier to spread liquid manure with the SwingMax

Precise distribution of liquid manure with the greatest possible distribution accuracy even with large working widths: This is the Vogelsang dribble bar system SwingMax. The precision distributors and optimal hose layout ensure accuracy in distribution across the boom and within the swath — even up to working widths of 36 meters. This allows existing tramlines to be used, thus also reducing the amount of travel across the field. The Vogelsang liquid manure linkages also feature customized section control, for a maximum of flexibility. With a wide variety of technical innovations such as TopSwing and TeleShift, this dribble bar system can be combined with Comfort Flow Control (CFC) for flexible adaptation to a wide range of working widths and the specific requirements of different farms. At the same time, these fittings on the tanker also make it possible to keep the travel width to a minimum even when the working width is at a maximum. Speedy and secure opening and retracting are made possible by perfectly coordinated hydraulic and mechanical components. The double tubular frame design that has been used makes this system especially sturdy. Nevertheless, the weight of the linkage has been kept to a minimum so that it does not become a burden. All in all, the dribble bar system SwingMax provides professional technology for the most demanding requirements, while ensuring maximum economic efficiency at all times.



Specifications
Model
SwingMax
Category Name
Agriculture
Year
2024
Sale Type
New
Manufacturer
Vogelsang
features of the swingmax

4-point design

The unit is designed to be mounted on a 4-point hydraulic system.

DropStop

When driving on the road, the hoses of the dribble bar system are rotated upward 180° so that they are vertical. This reliably prevents leakage and keeps the road clean and safe.

Precision distributors

Liquid manure, a valuable commodity, must be spread evenly and reliably in the distribution hoses. Vogelsang precision distributors permit precise distribution of the nutrients with a distribution coefficient of less than 5 percent. This makes spreading a safe and reliable process without fluctuations – which also guarantees even plant growth.

Optimum hose layout

The discharge hoses on the Vogelsang dribble bar systems all have similar lengths, thanks to the optimized hose layout. The liquid manure reaches the soil almost simultaneously from each one, and spreading across the entire working width and length is also guaranteed. This not only ensures optimum lateral distribution accuracy in the linkage, but also prevents the V shape that can otherwise form.

Slope compensation

The dribble bar linkage adapts to the contour of the soil. This reduces the load on the vehicle coupling and the entire frame structure. It also means that the hose ends are kept close to the soil at all times, and ensures that the liquid manure is deposited precisely across the entire working width.

Special hose

The hose is a key factor in spreading technology. As such, the hose material and composition of the plastic have been developed specially for Vogelsang over several decades. The combination of raw materials that we use for our special hose is characterized by high robustness, elasticity, and UV resistance. This makes the hoses resistant to the effects of chemicals and environmental influences. The unique manufacturing technique we use for our rigid end hoses brings additional benefits. The hose sections used as end hoses are always straight and absolutely dimensionally stable. Your advantage: there is no need for guide elements, which are heavy and prone to wear, and the hoses always remain open and do not stick. Furthermore, this rigid end hose configuration ensures defined strip spacing.

TopSwing

The outer TopSwing elements can be folded in 180° and laid on the base linkage, significantly reducing the transport dimensions of your unit. This prevents protrusion at the front of the vehicle and means that linkages with large working widths can also be mounted on compact tankers. Different working widths and part widths can also be implemented section by section in combination with the CFC.



options of the swingmax

Active slope compensation

In order to ensure that the linkage follows the soil contour as closely as possible, the control can be used to adjust its angle.

Comfort Flow Control (CFC)

Comfort Flow Control (CFC) is the universal solution when it comes to shutting off hoses in any system: part-width section cut-offs, tramline switching or DropStop systems. The CFC is installed in the hose outlets of the spreader device, downstream of the distributor. Each hose or group of hoses can be shut off from the cab. The CFC is versatile and can be used in any unit – dribble bar systems, trailing shoe systems or tillage units.

DoubleFold

DoubleFold can be used to manually reduce the working width of your unit. The outer frame elements are folded in using a hinge, and the corresponding discharge hoses can be connected via the CFC.

End hoses in DN 50

On request, end hoses can be delivered in DN 50 to ensure that the whole process runs even more smoothly.

Half-boom part-width section cut-off

When this option is selected, the flow of liquid manure and oil to one of the two precision distributors is sealed off. This allows you to adjust to a half-tramline over larger working widths and smooth out wedges in the field. It also prevents overlapping.

TeleShift at front

The front TeleShift allows you to combine larger linkages with compact tanks. It can also be used to set up various working widths without protrusion.

TeleShift at rear

The rear TeleShift allows you to shorten the transport dimensions of your unit, leaving almost no linkage protrusion at the rear. This compactness makes maneuvering much easier.



series

Vogelsang SwingMaxTHE SERIES OF THE DRIBBLE BAR SYSTEM SWINGMAX

Up to 33 meters working width
SwingMax

THE DRIBBLE BAR SYSTEM UP TO 33 METERS

Dribble bar system SwingMax

The dribble bar system SwingMax from Vogelsang allows nutrient-efficient low-level spreading of liquid manure from tankers with a working width of 18 to 33 meters. Under normal conditions, large working widths also mean high dynamic loads on the linkage. The SwingMax, however, counteracts that problem with its special design. The double tubular frame is carefully engineered to handle the greatest of loads, ensuring reliable, trouble-free operation. At the same time, the weight is minimal at these working widths. Two ExaCut precision distributors ensure constant distribution and uniform discharge rates. The dribble bar system SwingMax is not only stable and precise in operation. Thanks to a wide variety of technical innovations combined with Comfort Flow Control, it also sets a high standard for flexibility as well. The section control is designed so that every single hose can be switched off separately. The Vogelsang SwingMax system provides technology to meet the most demanding requirements, up to a working width of 33 meters.

Vogelsang SwingMax36 meters working width
SwingMax36

THE 36-METER DRIBBLE BAR SYSTEM

Dribble bar system SwingMax36

The Vogelsang dribble bar system SwingMax36 opens up a whole new dimension in the liquid manure application, providing extreme working width on tankers, with extreme distribution accuracy at the same time. This allows large fields to be completed in a very short time. The design of the linkage is based on the regular dribble bar system SwingMax, so it can withstand even the greatest of loads. In contrast to the SwingMax, which was designed for tramlines up to 33 meters, the frame of the SwingMax36 was designed as a triple construction due to the huge working width, with integration of an additional folding element. Distribution of the liquid manure to the individual hoses is handled here by three ExaCut precision distributors. With its large working width and high effectiveness, this Vogelsang linkage is the best system for spreading liquid manure on farms that demand the maximum in terms of working width.
